HARDWARE FEATURES
|
| LED |
Status |
| Dimensions |
30.5 × 14.8 × 111.7 mm (1.2 × 0.58 × 4.4 in) |
| Antenna |
2× High-Gain Dual-Band Antennas |
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate |
5 GHz: |
| |
11ax: Up to 1201 Mbps(dynamic) |
| |
11ac: Up to 867 Mbps(dynamic) |
| |
11n: Up to 300 Mbps(dynamic) |
| |
11a: Up to 54 Mbps(dynamic) |
| |
2.4 GHz: |
| |
11ax: Up to 574 Mbps(dynamic) |
| |
11n: Up to 400 Mbps(dynamic) |
| |
11g: Up to 54 Mbps(dynamic) |
| |
11b: Up to 11 Mbps(dynamic) |
| Transmit Power |
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) |
| |
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP) |
| Wireless Modes |
Infrastructure mode |
| Wireless Security |
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
OTHERS
|
| Certification |
FCC, CE, RoHS |
| Package Contents |
AX1800 High Gain Wireless USB Adapter Archer TX20UH |
| |
Quick Installation Guide |
| |

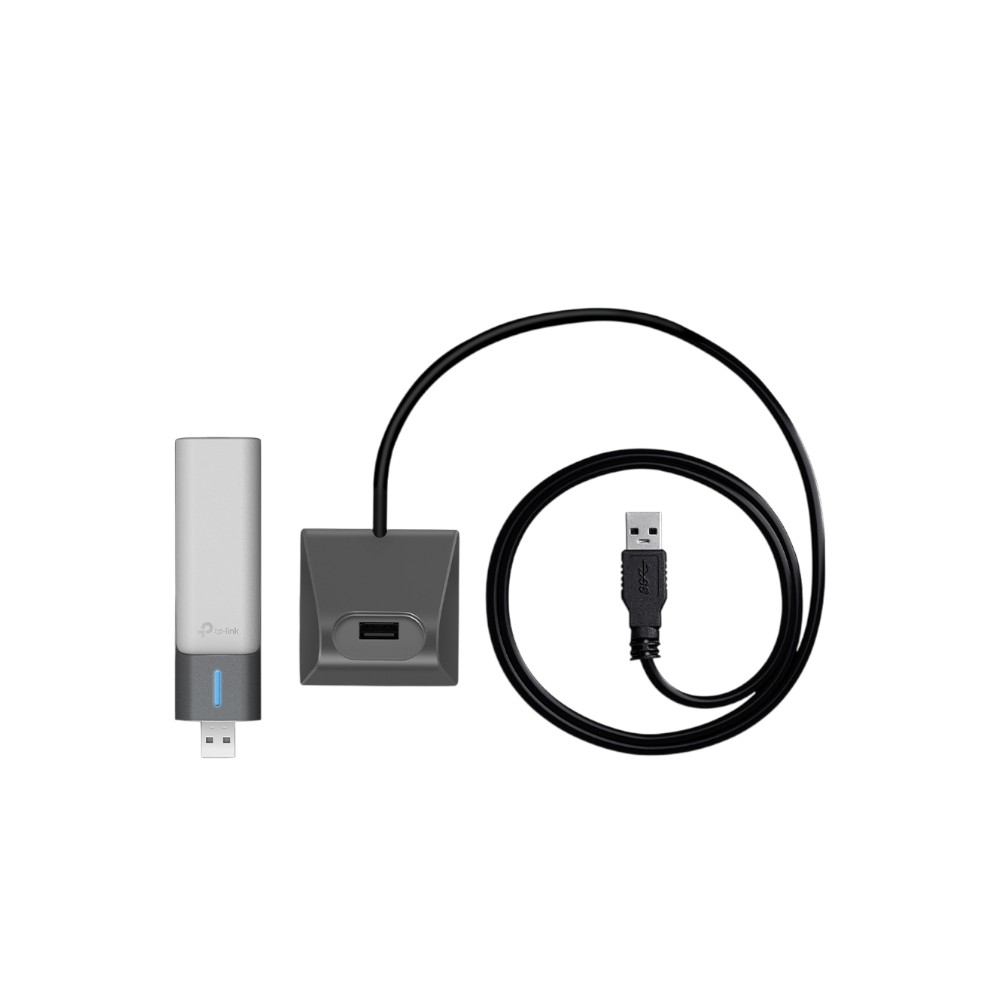

USB 3.0 Cradle |
| System Requirements |
Supported operating systems include Windows 10, 11 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| |
Operating Humidity: 10%~90% non-condensing |
| |
Storage Humidity: 5%~90% non-condensing |
